MCC::NoteValue Class Reference

Exact written note length: a power-of-two base and zero to four dots. More...

#include <NoteValue.h>

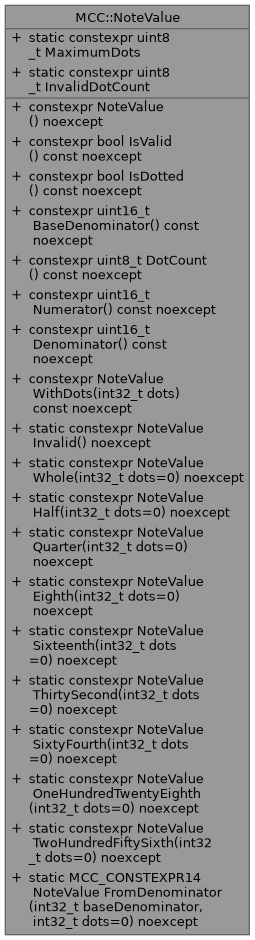

Collaboration diagram for MCC::NoteValue:

Public Member Functions
constexpr	NoteValue () noexcept
	Creates the invalid note value.
constexpr bool	IsValid () const noexcept
	Returns true unless this is the invalid note value.
constexpr bool	IsDotted () const noexcept
	Returns true when this valid value has augmentation dots.
constexpr uint16_t	BaseDenominator () const noexcept
	Returns the undotted denominator (1 through 256), or 0.
constexpr uint8_t	DotCount () const noexcept
	Returns the number of dots, or InvalidDotCount when invalid.
constexpr uint16_t	Numerator () const noexcept
	Returns the exact reduced numerator relative to a whole note.
constexpr uint16_t	Denominator () const noexcept
	Returns the exact reduced denominator relative to a whole note.
constexpr NoteValue	WithDots (int32_t dots) const noexcept
	Returns the same base with dots, or invalid for bad input.

Static Public Member Functions
static constexpr NoteValue	Invalid () noexcept
	Returns the invalid note value.
static constexpr NoteValue	Whole (int32_t dots=0) noexcept
	Creates a whole note, optionally augmented by dots.
static constexpr NoteValue	Half (int32_t dots=0) noexcept
	Creates a half note, optionally augmented by dots.
static constexpr NoteValue	Quarter (int32_t dots=0) noexcept
	Creates a quarter note, optionally augmented by dots.
static constexpr NoteValue	Eighth (int32_t dots=0) noexcept
	Creates an eighth note, optionally augmented by dots.
static constexpr NoteValue	Sixteenth (int32_t dots=0) noexcept
	Creates a sixteenth note, optionally augmented by dots.
static constexpr NoteValue	ThirtySecond (int32_t dots=0) noexcept
	Creates a thirty-second note, optionally augmented by dots.
static constexpr NoteValue	SixtyFourth (int32_t dots=0) noexcept
	Creates a sixty-fourth note, optionally augmented by dots.
static constexpr NoteValue	OneHundredTwentyEighth (int32_t dots=0) noexcept
	Creates a 128th note, optionally augmented by dots.
static constexpr NoteValue	TwoHundredFiftySixth (int32_t dots=0) noexcept
	Creates a 256th note, optionally augmented by dots.
static MCC_CONSTEXPR14 NoteValue	FromDenominator (int32_t baseDenominator, int32_t dots=0) noexcept
	Creates a value from the undotted base denominator.

Static Public Attributes
static constexpr uint8_t	MaximumDots = 4u
	Largest supported number of augmentation dots.
static constexpr uint8_t	InvalidDotCount = 0xFFu
	Sentinel returned by DotCount() for an invalid value.

Friends
constexpr bool	operator== (NoteValue a, NoteValue b) noexcept
	Written equality: the base and dot count must both match.
constexpr bool	operator!= (NoteValue a, NoteValue b) noexcept
constexpr bool	operator< (NoteValue a, NoteValue b) noexcept
	Orders by exact duration, with invalid values after valid values. Written values with equal duration compare equivalent even when their spelling differs.
constexpr bool	operator> (NoteValue a, NoteValue b) noexcept
constexpr bool	operator<= (NoteValue a, NoteValue b) noexcept
constexpr bool	operator>= (NoteValue a, NoteValue b) noexcept

Detailed Description

Exact written note length: a power-of-two base and zero to four dots.

A note value is independent of tempo, clocks and PPQN. Its duration is an exact reduced fraction of a whole note: a quarter note is 1/4, a dotted quarter is 3/8, and a double-dotted quarter is 7/16.

Default construction and invalid factories produce the single invalid value. Invalid values return 0/0 from Numerator() and Denominator().

Member Function Documentation

FromDenominator()

MCC_CONSTEXPR14 NoteValue MCC::NoteValue::FromDenominator ( int32_t baseDenominator, int32_t dots = 0 )

inlinestaticnoexcept

Creates a value from the undotted base denominator.

baseDenominator must be one of 1, 2, 4, ..., 256; dots must be between zero and MaximumDots. Otherwise the result is invalid.

---

The documentation for this class was generated from the following file:

• src/MCC/Rhythm/NoteValue.h
