MCC::Pitch Class Reference

Written absolute pitch: a note name plus an octave. More...

#include <Pitch.h>

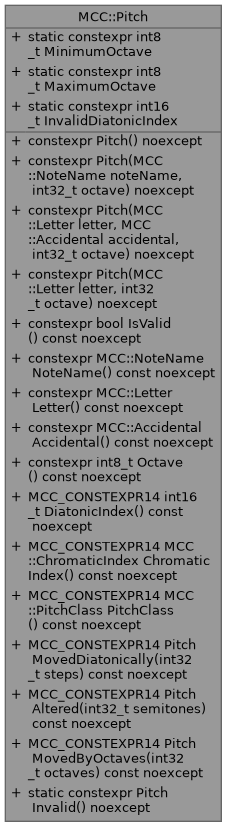

Collaboration diagram for MCC::Pitch:

Public Member Functions
constexpr	Pitch () noexcept
	Creates the invalid pitch (SPEC-ERR-2).
constexpr	Pitch (MCC::NoteName noteName, int32_t octave) noexcept
	Creates noteName written in octave. An invalid note name or an octave outside [-128, 127] produces the invalid pitch (SPEC-ERR-3).
constexpr	Pitch (MCC::Letter letter, MCC::Accidental accidental, int32_t octave) noexcept
	Creates letter + accidental written in octave.
constexpr	Pitch (MCC::Letter letter, int32_t octave) noexcept
	Creates the natural letter written in octave.
constexpr bool	IsValid () const noexcept
	Returns true unless this is the invalid pitch.
constexpr MCC::NoteName	NoteName () const noexcept
	Returns the written note name; invalid for the invalid pitch.
constexpr MCC::Letter	Letter () const noexcept
	Returns the written letter, or Letter::C for the invalid pitch (SPEC-ERR-7).
constexpr MCC::Accidental	Accidental () const noexcept
	Returns the written accidental; invalid for the invalid pitch.
constexpr int8_t	Octave () const noexcept
	Returns the written octave, or 0 for the invalid pitch (SPEC-ERR-7).
MCC_CONSTEXPR14 int16_t	DiatonicIndex () const noexcept
	Returns octave * 7 + letterIndex (SPEC-ORD-2), or InvalidDiatonicIndex for the invalid pitch (SPEC-ERR-7).
MCC_CONSTEXPR14 MCC::ChromaticIndex	ChromaticIndex () const noexcept
	Returns (octave + 1) * 12 + letterSemitone + accidental (SPEC-ORD-3); the invalid pitch yields the invalid index.
MCC_CONSTEXPR14 MCC::PitchClass	PitchClass () const noexcept
	Returns the pitch class of the written note name (SPEC-ORD-4); the invalid pitch yields the invalid class.
MCC_CONSTEXPR14 Pitch	MovedDiatonically (int32_t steps) const noexcept
	Moves the letter by steps diatonic letters, changing octave between B and C, and keeps the written accidental: B#3 moved by 1 is C#4.
MCC_CONSTEXPR14 Pitch	Altered (int32_t semitones) const noexcept
	Keeps the letter and octave and alters the accidental by semitones; outside [-4, +4] the result is invalid and is never respelled (SPEC-ACC-3).
MCC_CONSTEXPR14 Pitch	MovedByOctaves (int32_t octaves) const noexcept
	Moves the pitch by octaves octaves, keeping its spelling. The result is invalid outside [-128, 127] (SPEC-OCT-4).

Static Public Member Functions
static constexpr Pitch	Invalid () noexcept
	Returns the invalid pitch.

Static Public Attributes
static constexpr int8_t	MinimumOctave = -128
	Lowest supported octave.
static constexpr int8_t	MaximumOctave = 127
	Highest supported octave.
static constexpr int16_t	InvalidDiatonicIndex = 32767
	Sentinel returned by DiatonicIndex() for the invalid pitch (SPEC-ERR-7). Do not rely on it; check IsValid().

Friends
constexpr bool	operator== (Pitch a, Pitch b) noexcept
	Written equality: letter, accidental and octave (SPEC-EQ-1). All invalid pitches are equal (SPEC-ERR-6).
constexpr bool	operator!= (Pitch a, Pitch b) noexcept
MCC_CONSTEXPR14 bool	operator< (Pitch a, Pitch b) noexcept
	Written order: octave, then letter, then accidental (SPEC-ORD-5). B#3 < Cb4 although B#3 sounds higher. The invalid pitch sorts last.
MCC_CONSTEXPR14 bool	operator> (Pitch a, Pitch b) noexcept
MCC_CONSTEXPR14 bool	operator<= (Pitch a, Pitch b) noexcept
MCC_CONSTEXPR14 bool	operator>= (Pitch a, Pitch b) noexcept

Detailed Description

Written absolute pitch: a note name plus an octave.

MCC uses scientific pitch notation: middle C is C4 (SPEC-OCT-1). The octave belongs to the written letter, so B#3 is written in octave 3 and sounds as C4 (SPEC-OCT-3). Octaves range from -128 to 127 (SPEC-OCT-4).

operator== and operator< compare the written pitch (SPEC-EQ-1, SPEC-ORD-5); sounding pitch is compared through ChromaticIndex(), MCC::IsEnharmonic() and MCC::IsLowerThan() (SPEC-EQ-2, SPEC-ORD-6).

Default construction, an invalid note name or an out-of-range octave produce the single invalid value (SPEC-ERR-1..3). Operations on the invalid value, and operations whose result leaves the octave or accidental ranges, return the invalid value (SPEC-ERR-4, SPEC-ERR-5).

Member Function Documentation

MovedDiatonically()

MCC_CONSTEXPR14 Pitch MCC::Pitch::MovedDiatonically ( int32_t steps ) const

inlinenoexcept

Moves the letter by steps diatonic letters, changing octave between B and C, and keeps the written accidental: B#3 moved by 1 is C#4.

The result is invalid when the octave leaves [-128, 127] (SPEC-OCT-4, SPEC-ERR-5).

---

The documentation for this class was generated from the following file:

• src/MCC/Pitch/Pitch.h
