MCC::Chord Class Reference

A chord pattern spelled from a root note name. More...

#include <Chord.h>

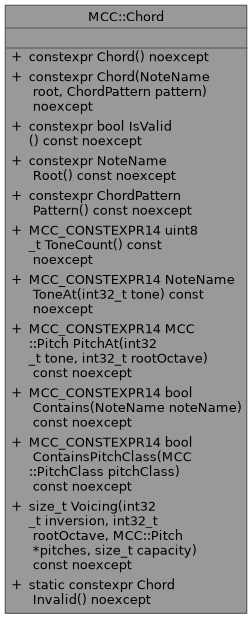

Collaboration diagram for MCC::Chord:

Public Member Functions
constexpr	Chord () noexcept
	Creates the invalid chord (SPEC-ERR-2).
constexpr	Chord (NoteName root, ChordPattern pattern) noexcept
	Spells pattern from root; invalid when either is invalid.
constexpr bool	IsValid () const noexcept
	Returns true unless this is the invalid chord.
constexpr NoteName	Root () const noexcept
	Returns the root note name.
constexpr ChordPattern	Pattern () const noexcept
	Returns the root-independent pattern.
MCC_CONSTEXPR14 uint8_t	ToneCount () const noexcept
	Returns the number of tones, or 0 for the invalid chord.
MCC_CONSTEXPR14 NoteName	ToneAt (int32_t tone) const noexcept
	Returns the note name of tone (1-based), or the invalid note name outside the chord or when it cannot be spelled.
MCC_CONSTEXPR14 MCC::Pitch	PitchAt (int32_t tone, int32_t rootOctave) const noexcept
	Returns the root-position pitch of tone when the root is placed in rootOctave; extensions keep their compound distance.
MCC_CONSTEXPR14 bool	Contains (NoteName noteName) const noexcept
	Returns true when a tone is written exactly as noteName.
MCC_CONSTEXPR14 bool	ContainsPitchClass (MCC::PitchClass pitchClass) const noexcept
	Returns true when any tone sounds as pitchClass, regardless of spelling (explicit enharmonic membership, SPEC-EQ-2).
size_t	Voicing (int32_t inversion, int32_t rootOctave, MCC::Pitch *pitches, size_t capacity) const noexcept
	Writes a close-position voicing of inversion into pitches.

Static Public Member Functions
static constexpr Chord	Invalid () noexcept
	Returns the invalid chord.

Friends
constexpr bool	operator== (const Chord &a, const Chord &b) noexcept
	Compares roots by spelling and patterns by tones.
constexpr bool	operator!= (const Chord &a, const Chord &b) noexcept
	Negation of operator==.

Detailed Description

A chord pattern spelled from a root note name.

Tones are 1-based in root-position order. Each tone is the root transposed by the pattern's interval, so E major contains G# and the ninth of C9 is D (SPEC-CHD-2). A tone whose spelling would need an accidental outside [-4, +4] is the invalid note name (SPEC-ACC-3).

Membership is written by default (Contains) and enharmonic only on request (ContainsPitchClass), following SPEC-EQ-1..2.

Member Function Documentation

Voicing()

size_t MCC::Chord::Voicing ( int32_t inversion, int32_t rootOctave, MCC::Pitch * pitches, size_t capacity ) const

inlinenoexcept

Writes a close-position voicing of inversion into pitches.

Inversion 0 is root position; inversion k places tone k + 1 in the bass with the root in rootOctave, and raises each earlier tone by whole octaves until it lies above the previous pitch (SPEC-CHD-3). Writes at most capacity pitches and returns the number the voicing needs, or 0 for an invalid chord or an inversion outside [0, ToneCount() - 1].

---

The documentation for this class was generated from the following file:

• src/MCC/Chord/Chord.h
