Exact written time signature and its simple/compound interpretation. More...

#include <Meter.h>

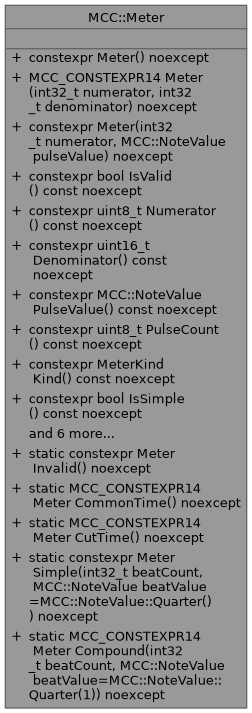

Collaboration diagram for MCC::Meter:

Public Member Functions
constexpr	Meter () noexcept
	Creates the invalid meter (SPEC-ERR-2).
MCC_CONSTEXPR14	Meter (int32_t numerator, int32_t denominator) noexcept
	Creates the written signature numerator / denominator.
constexpr	Meter (int32_t numerator, MCC::NoteValue pulseValue) noexcept
	Creates a meter from its numerator and undotted denominator unit.
constexpr bool	IsValid () const noexcept
	Returns true unless this is the invalid meter.
constexpr uint8_t	Numerator () const noexcept
	Returns the written numerator, or 0 for the invalid meter.
constexpr uint16_t	Denominator () const noexcept
	Returns the written denominator, or 0 for the invalid meter.
constexpr MCC::NoteValue	PulseValue () const noexcept
	Returns the denominator unit, or the invalid NoteValue.
constexpr uint8_t	PulseCount () const noexcept
	Returns the number of denominator units in the measure.
constexpr MeterKind	Kind () const noexcept
	Classifies this meter as simple, compound, irregular or invalid.
constexpr bool	IsSimple () const noexcept
constexpr bool	IsCompound () const noexcept
constexpr bool	IsIrregular () const noexcept
constexpr uint8_t	BeatCount () const noexcept
	Returns the interpreted beat count, or 0 for irregular/invalid.
MCC_CONSTEXPR14 MCC::NoteValue	BeatValue () const noexcept
	Returns the beat value, or invalid for irregular/invalid meters.
MCC_CONSTEXPR14 uint16_t	MeasureNumerator () const noexcept
	Reduced numerator of the measure length in whole notes.
MCC_CONSTEXPR14 uint16_t	MeasureDenominator () const noexcept
	Reduced denominator of the measure length in whole notes.

Static Public Member Functions
static constexpr Meter	Invalid () noexcept
	Returns the invalid meter.
static MCC_CONSTEXPR14 Meter	CommonTime () noexcept
	Returns common time (4/4).
static MCC_CONSTEXPR14 Meter	CutTime () noexcept
	Returns cut time (2/2).
static constexpr Meter	Simple (int32_t beatCount, MCC::NoteValue beatValue=MCC::NoteValue::Quarter()) noexcept
	Creates a simple meter from one to four undotted beats.
static MCC_CONSTEXPR14 Meter	Compound (int32_t beatCount, MCC::NoteValue beatValue=MCC::NoteValue::Quarter(1)) noexcept
	Creates a compound meter from dotted beats.

Friends
constexpr bool	operator== (Meter a, Meter b) noexcept
	Written equality; equivalent durations need not be equal.
constexpr bool	operator!= (Meter a, Meter b) noexcept
constexpr bool	operator< (Meter a, Meter b) noexcept
	Written order by numerator then denominator; invalid sorts last.
constexpr bool	operator> (Meter a, Meter b) noexcept
constexpr bool	operator<= (Meter a, Meter b) noexcept
constexpr bool	operator>= (Meter a, Meter b) noexcept

Detailed Description

Exact written time signature and its simple/compound interpretation.

The numerator counts denominator units in one measure. The denominator is an undotted power-of-two NoteValue from whole through 256th. Simple meters have one denominator unit per beat; compound meters have three and expose the corresponding dotted beat. Other numerators are valid irregular meters, but their beat grouping is deliberately unspecified.

Meter contains no tempo, wall-clock duration, MIDI clock or PPQN state.

Constructor & Destructor Documentation

◆ Meter()

MCC_CONSTEXPR14 MCC::Meter::Meter	(	int32_t	numerator,
		int32_t	denominator )

inlinenoexcept

Creates the written signature numerator / denominator.

The numerator must be in [1, 255]; the denominator must be one of 1, 2, 4, ..., 256. Compound meters require denominator 2 or greater because NoteValue does not represent a dotted value longer than a whole.

Member Function Documentation

◆ BeatValue()

MCC_CONSTEXPR14 MCC::NoteValue MCC::Meter::BeatValue ( ) const

inlinenoexcept

Returns the beat value, or invalid for irregular/invalid meters.

The beat equals one pulse in simple meter and three pulses in compound meter, such as dotted quarter in 6/8.

◆ Compound()

MCC_CONSTEXPR14 Meter MCC::Meter::Compound	(	int32_t	beatCount,
		MCC::NoteValue	beatValue = MCC::NoteValue::Quarter(1) )

inlinestaticnoexcept

Creates a compound meter from dotted beats.

Compound(2, NoteValue::Quarter(1)) is 6/8. The beat count must be in [2, 85]; beatValue must have exactly one dot and a base from whole through 128th.

◆ Simple()

constexpr Meter MCC::Meter::Simple	(	int32_t	beatCount,
		MCC::NoteValue	beatValue = MCC::NoteValue::Quarter() )

inlinestaticconstexprnoexcept

Creates a simple meter from one to four undotted beats.

Simple(3, NoteValue::Quarter()) is 3/4.

The documentation for this class was generated from the following file:

src/MCC/Rhythm/Meter.h
